About microbatch incremental models beta

Microbatch

The new microbatch strategy is available in beta for dbt Cloud "Latest" and dbt Core v1.9.

If you use a custom microbatch macro, set a distinct behavior flag in your dbt_project.yml to enable batched execution. If you don't have a custom microbatch macro, you don't need to set this flag as dbt will handle microbatching automatically for any model using the microbatch strategy.

Read and participate in the discussion: dbt-core#10672

Refer to Supported incremental strategies by adapter for a list of supported adapters.

What is "microbatch" in dbt?​

Incremental models in dbt are a materialization designed to efficiently update your data warehouse tables by only transforming and loading new or changed data since the last run. Instead of reprocessing an entire dataset every time, incremental models process a smaller number of rows, and then append, update, or replace those rows in the existing table. This can significantly reduce the time and resources required for your data transformations.

Microbatch is an incremental strategy designed for large time-series datasets:

  • It relies solely on a time column (event_time) to define time-based ranges for filtering. Set the event_time column for your microbatch model and its direct parents (upstream models). Note, this is different to partition_by, which groups rows into partitions.

  • It complements, rather than replaces, existing incremental strategies by focusing on efficiency and simplicity in batch processing.

  • Unlike traditional incremental strategies, microbatch enables you to reprocess failed batches, auto-detect parallel batch execution, and eliminate the need to implement complex conditional logic for backfilling.

  • Note, microbatch might not be the best strategy for all use cases. Consider other strategies for use cases such as not having a reliable event_time column or if you want more control over the incremental logic. Read more in How microbatch compares to other incremental strategies.

How microbatch works​

When dbt runs a microbatch model — whether for the first time, during incremental runs, or in specified backfills — it will split the processing into multiple queries (or "batches"), based on the event_time and batch_size you configure.

Each "batch" corresponds to a single bounded time period (by default, a single day of data). Where other incremental strategies operate only on "old" and "new" data, microbatch models treat every batch as an atomic unit that can be built or replaced on its own. Each batch is independent and idempotent.

This is a powerful abstraction that makes it possible for dbt to run batches separately, concurrently, and retry them independently.

Example​

A sessions model aggregates and enriches data that comes from two other models:

  • page_views is a large, time-series table. It contains many rows, new records almost always arrive after existing ones, and existing records rarely update. It uses the page_view_start column as its event_time.
  • customers is a relatively small dimensional table. Customer attributes update often, and not in a time-based manner — that is, older customers are just as likely to change column values as newer customers. The customers model doesn't configure an event_time column.

As a result:

  • Each batch of sessions will filter page_views to the equivalent time-bounded batch.
  • The customers table isn't filtered, resulting in a full scan for every batch.
tip

In addition to configuring event_time for the target table, you should also specify it for any upstream models that you want to filter, even if they have different time columns.

models/staging/page_views.yml
models:
  - name: page_views
    config:
      event_time: page_view_start

We run the sessions model for October 1, 2024, and then again for October 2. It produces the following queries:

The event_time for the sessions model is set to session_start, which marks the beginning of a user’s session on the website. This setting allows dbt to combine multiple page views (each tracked by their own page_view_start timestamps) into a single session. This way, session_start differentiates the timing of individual page views from the broader timeframe of the entire user session.

models/sessions.sql
{{ config(
    materialized='incremental',
    incremental_strategy='microbatch',
    event_time='session_start',
    begin='2020-01-01',
    batch_size='day'
) }}

with page_views as (

    -- this ref will be auto-filtered
    select * from {{ ref('page_views') }}

),

customers as (

    -- this ref won't
    select * from {{ ref('customers') }}

),

select
  page_views.id as session_id,
  page_views.page_view_start as session_start,
  customers.*
  from page_views
  left join customers
    on page_views.customer_id = customer.id

dbt will instruct the data platform to take the result of each batch query and insert, update, or replace the contents of the analytics.sessions table for the same day of data. To perform this operation, dbt will use the most efficient atomic mechanism for "full batch" replacement that is available on each data platform.

It does not matter whether the table already contains data for that day. Given the same input data, the resulting table is the same no matter how many times a batch is reprocessed.

Each batch of sessions filters page_views to the matching time-bound batch, but doesn't filter sessions, performing a full scan for each batch.Each batch of sessions filters page_views to the matching time-bound batch, but doesn't filter sessions, performing a full scan for each batch.

Relevant configs​

Several configurations are relevant to microbatch models, and some are required:

ConfigDescriptionDefaultTypeRequired
event_timeThe column indicating "at what time did the row occur." Required for your microbatch model and any direct parents that should be filtered.N/AColumnRequired
beginThe "beginning of time" for the microbatch model. This is the starting point for any initial or full-refresh builds. For example, a daily-grain microbatch model run on 2024-10-01 with begin = '2023-10-01 will process 366 batches (it's a leap year!) plus the batch for "today."N/ADateRequired
batch_sizeThe granularity of your batches. Supported values are hour, day, month, and yearN/AStringRequired
lookbackProcess X batches prior to the latest bookmark to capture late-arriving records.1IntegerOptional
concurrent_batchesAn override for whether batches run concurrently (at the same time) or sequentially (one after the other).NoneBooleanOptional

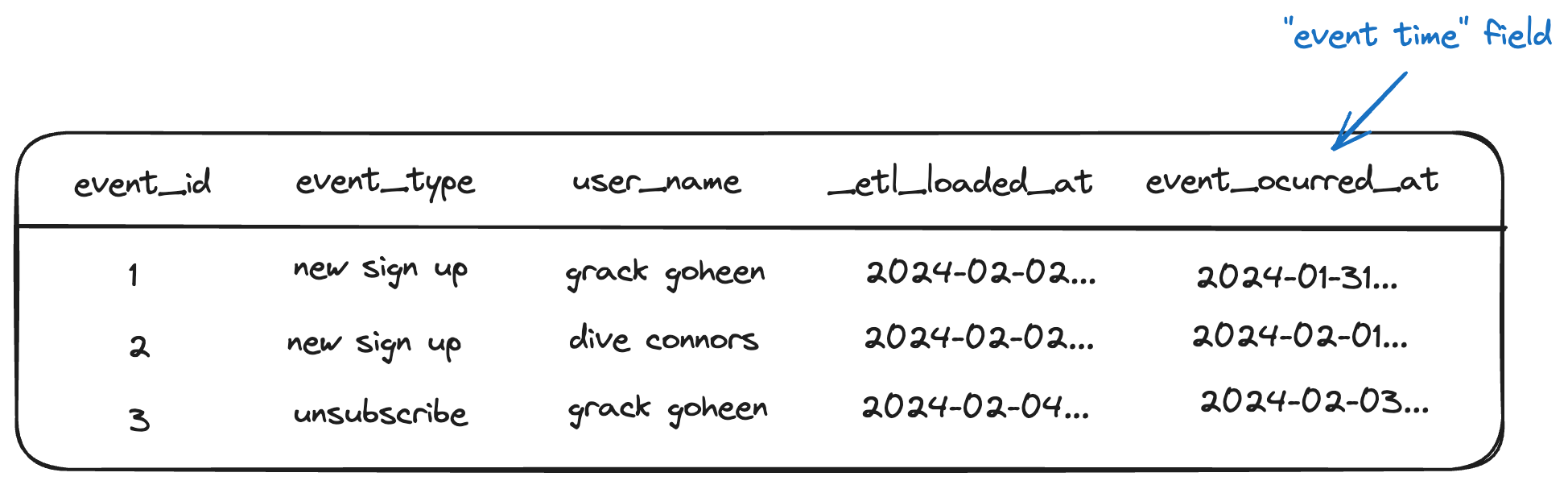

The event_time column configures the real-world time of this recordThe event_time column configures the real-world time of this record

Required configs for specific adapters​

Some adapters require additional configurations for the microbatch strategy. This is because each adapter implements the microbatch strategy differently.

The following table lists the required configurations for the specific adapters, in addition to the standard microbatch configs:

Adapterunique_key configpartition_by config
dbt-postgres✅ RequiredN/A
dbt-sparkN/A✅ Required
dbt-bigqueryN/A✅ Required

For example, if you're using dbt-postgres, configure unique_key as follows:

models/sessions.sql
{{ config(
    materialized='incremental',
    incremental_strategy='microbatch',
    unique_key='sales_id', ## required for dbt-postgres
    event_time='transaction_date',
    begin='2023-01-01',
    batch_size='day'
) }}

select
    sales_id,
    transaction_date,
    customer_id,
    product_id,
    total_amount
from {{ source('sales', 'transactions') }}

In this example, unique_key is required because dbt-postgres microbatch uses the merge strategy, which needs a unique_key to identify which rows in the data warehouse need to get merged. Without a unique_key, dbt won't be able to match rows between the incoming batch and the existing table.

Full refresh​

As a best practice, we recommend configuring full_refresh: False on microbatch models so that they ignore invocations with the --full-refresh flag. If you need to reprocess historical data, do so with a targeted backfill that specifies explicit start and end dates.

Usage​

You must write your model query to process (read and return) exactly one "batch" of data. This is a simplifying assumption and a powerful one:

  • You don’t need to think about is_incremental filtering
  • You don't need to pick among DML strategies (upserting/merging/replacing)
  • You can preview your model, and see the exact records for a given batch that will appear when that batch is processed and written to the table

When you run a microbatch model, dbt will evaluate which batches need to be loaded, break them up into a SQL query per batch, and load each one independently.

dbt will automatically filter upstream inputs (source or ref) that define event_time, based on the lookback and batch_size configs for this model.

During standard incremental runs, dbt will process batches according to the current timestamp and the configured lookback, with one query per batch.

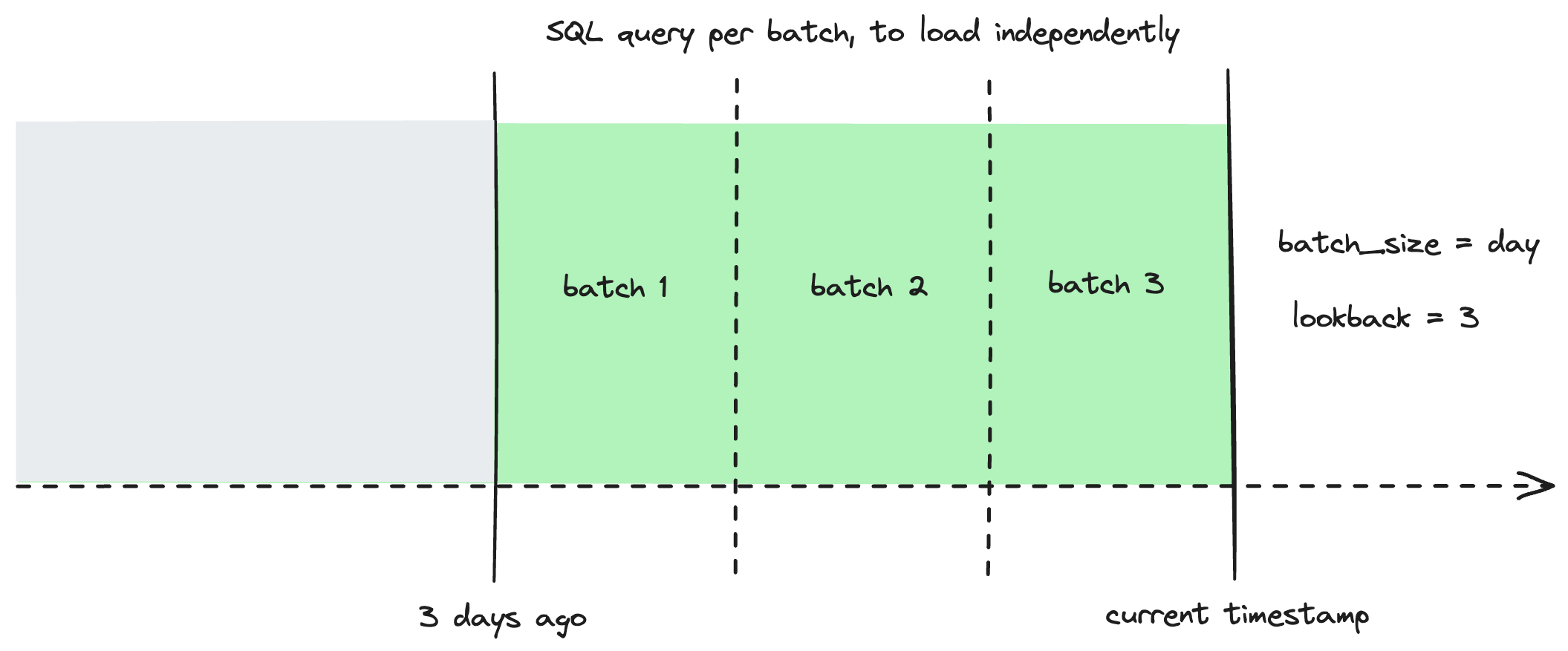

Configure a lookback to reprocess additional batches during standard incremental runsConfigure a lookback to reprocess additional batches during standard incremental runs

Note: If there’s an upstream model that configures event_time, but you don’t want the reference to it to be filtered, you can specify ref('upstream_model').render() to opt-out of auto-filtering. This isn't generally recommended — most models that configure event_time are fairly large, and if the reference is not filtered, each batch will perform a full scan of this input table.

Backfills​

Whether to fix erroneous source data or retroactively apply a change in business logic, you may need to reprocess a large amount of historical data.

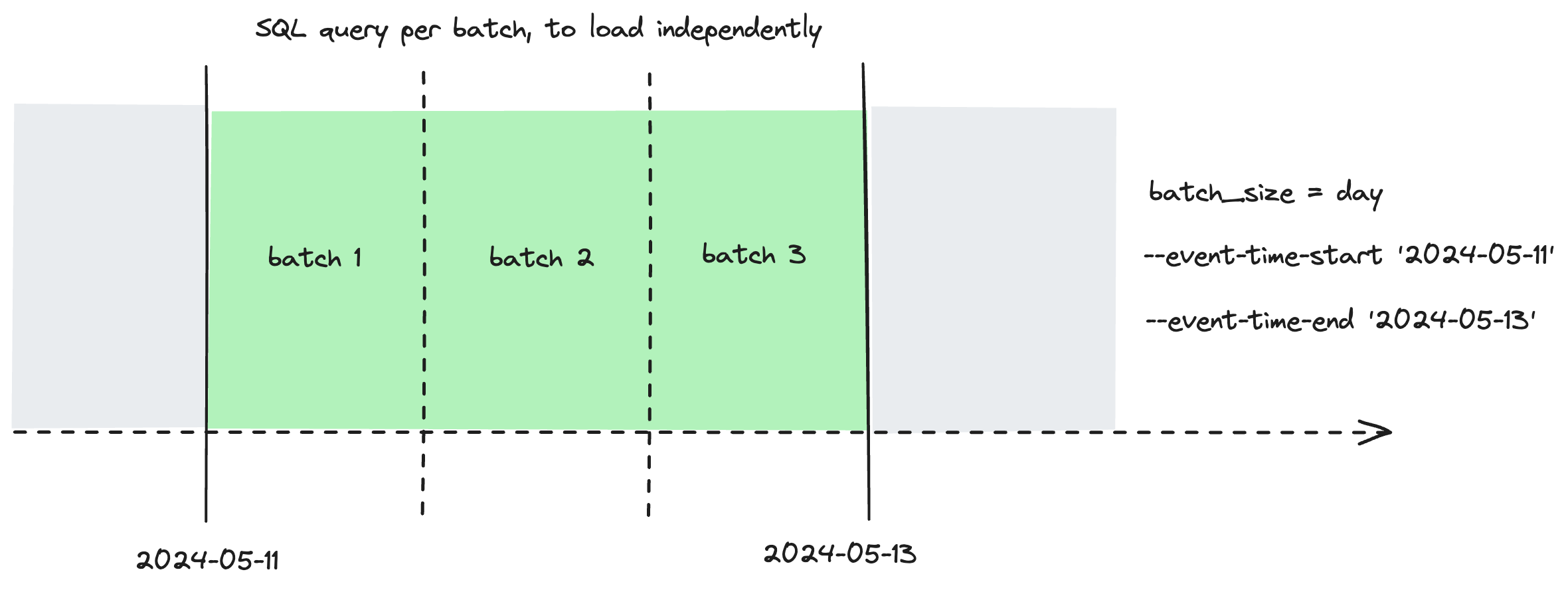

Backfilling a microbatch model is as simple as selecting it to run or build, and specifying a "start" and "end" for event_time. Note that --event-time-start and --event-time-end are mutually necessary, meaning that if you specify one, you must specify the other.

As always, dbt will process the batches between the start and end as independent queries.

dbt run --event-time-start "2024-09-01" --event-time-end "2024-09-04"
Configure a lookback to reprocess additional batches during standard incremental runsConfigure a lookback to reprocess additional batches during standard incremental runs

Retry​

If one or more of your batches fail, you can use dbt retry to reprocess only the failed batches.

Partial retry

Timezones​

For now, dbt assumes that all values supplied are in UTC:

  • event_time
  • begin
  • --event-time-start
  • --event-time-end

While we may consider adding support for custom time zones in the future, we also believe that defining these values in UTC makes everyone's lives easier.

Parallel batch execution​

The microbatch strategy offers the benefit of updating a model in smaller, more manageable batches.

Parallel batch execution means that multiple batches are processed at the same time, instead of one after the other (sequentially) for faster processing of your microbatch models.

dbt automatically detects whether a batch can be run in parallel in most cases, which means you don’t need to configure this setting. However, the concurrent_batches config is available as an override (not a gate), allowing you to specify whether batches should or shouldn’t be run in parallel in specific cases.

For example, if you have a microbatch model with 12 batches, you can execute those batches to run in parallel. Specifically they'll run in parallel limited by the number of available threads.

Prerequisites​

To enable parallel execution, you must meet the following conditions:

  • You use the following supported adapters:
    • Snowflake
    • Databricks
    • More adapters coming soon!

      • We'll be continuing to test and add concurrency support for adapters. This means that some adapters might get concurrency support after the 1.9 initial release.

  • You meet additional conditions mentioned in the next section

How parallel batch execution works​

A batch can only run in parallel if:

StepConditionParallel executionSequential execution
1.Not the first batch✅-
2.Not the last batch✅-
3.Adapter supports parallel batches✅-

After checking for 1, 2, and 3 in the previous table — and if concurrent_batches value isn't set, dbt will intelligently auto-detect if the model invokes the {{ this }} Jinja function. If it references {{ this }}, the batches will run sequentially since {{ this }} represents the database of the current model and referencing the same relation causes conflict.

Otherwise, if {{ this }} isn't detected (and other conditions are met), the batches will run in parallel. This can be overriden by setting a value for concurrent_batches.

Parallel or sequential execution​

Choosing between parallel batch execution and sequential processing depends on the specific requirements of your use case.

  • Parallel batch execution is faster but requires logic that's independent of batch execution order. For example, if you're developing a data pipeline for a system that processes user transactions in batches, each batch is executed in parallel for better performance. However, the logic used to process each transaction shouldn't depend on the order of how batches are executed or completed.
  • Sequential processing is slower but essential for calculations like cumulative metrics in microbatch models. It processes data in the correct order, allowing each step to build on the previous one.

Configure concurrent_batches​

By default, dbt auto-detects whether batches can run in parallel for microbatch models, and this works correctly in most cases. However, you can override dbt's detection by setting the concurrent_batches config in your dbt_project.yml or model .sql file to specify parallel or sequential execution, given you meet all the conditions:

dbt_project.yml
models:
  +concurrent_batches: True # value set to True to run batches in parallel

Depending on your use case, configuring your microbatch models to run in parallel offer faster processing, in comparison to running batches sequentially.

How microbatch compares to other incremental strategies​

As data warehouses roll out new operations for concurrently replacing/upserting data partitions, we may find that the new operation for the data warehouse is more efficient than what the adapter uses for microbatch. In such instances we reserve the right the update the default operation for microbatch, so long as it works as intended/documented for models that fit the microbatch paradigm.

How microbatch compares to other incremental strategies?​

Most incremental models rely on the end user (you) to explicitly tell dbt what "new" means, in the context of each model, by writing a filter in an {% if is_incremental() %} conditional block. You are responsible for crafting this SQL in a way that queries {{ this }} to check when the most recent record was last loaded, with an optional look-back window for late-arriving records.

Other incremental strategies will control how the data is being added into the table — whether append-only insert, delete + insert, merge, insert overwrite, etc — but they all have this in common.

As an example:

{{
    config(
        materialized='incremental',
        incremental_strategy='delete+insert',
        unique_key='date_day'
    )
}}

select * from {{ ref('stg_events') }}

    {% if is_incremental() %}
        -- this filter will only be applied on an incremental run
        -- add a lookback window of 3 days to account for late-arriving records
        where date_day >= (select {{ dbt.dateadd("day", -3, "max(date_day)") }} from {{ this }})
    {% endif %}

For this incremental model:

  • "New" records are those with a date_day greater than the maximum date_day that has previously been loaded
  • The lookback window is 3 days
  • When there are new records for a given date_day, the existing data for date_day is deleted and the new data is inserted

Let’s take our same example from before, and instead use the new microbatch incremental strategy:

models/staging/stg_events.sql
{{
    config(
        materialized='incremental',
        incremental_strategy='microbatch',
        event_time='event_occured_at',
        batch_size='day',
        lookback=3,
        begin='2020-01-01',
        full_refresh=false
    )
}}

select * from {{ ref('stg_events') }} -- this ref will be auto-filtered

Where you’ve also set an event_time for the model’s direct parents - in this case, stg_events:

models/staging/stg_events.yml
models:
  - name: stg_events
    config:
      event_time: my_time_field

And that’s it!

When you run the model, each batch templates a separate query. For example, if you were running the model on October 1, dbt would template separate queries for each day between September 28 and October 1, inclusive — four batches in total.

The query for 2024-10-01 would look like:

target/compiled/staging/stg_events.sql
select * from (
    select * from "analytics"."stg_events"
    where my_time_field >= '2024-10-01 00:00:00'
      and my_time_field < '2024-10-02 00:00:00'
)

Based on your data platform, dbt will choose the most efficient atomic mechanism to insert, update, or replace these four batches (2024-09-28, 2024-09-29, 2024-09-30, and 2024-10-01) in the existing table.
